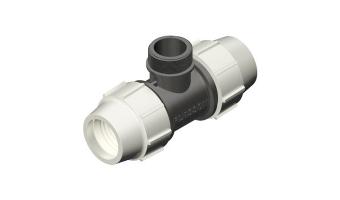

PP - T-kobling m/utv. gjenge i gren
|
Vare nr.:
|

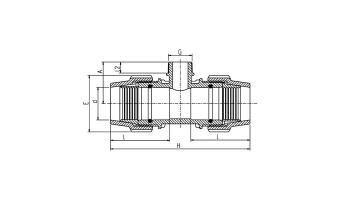

Dim.:
|
d (mm)
|
G (R) (mm)
|
H: (mm)
|
E: (mm)
|
l: (mm)
|
l2: (mm)
|
UB
|
UC
|
|
Vekt:
|
|
PL-07840205
|
20 - 1/2'' - 20
|
20 mm
|
1/2"
|
138
|
48
|
56
|
17
|
10
|
180
|
|
105g
|
|
PL-07840207
|
20 - 3/4'' - 20
|
20 mm
|
3/4"
|
144
|
48
|
56
|
18
|
10
|
180
|
|
108g
|
|
PL-07840255
|
25 - 1/2'' - 25
|
25 mm
|
1/2"
|
146
|
54
|
58
|
17
|
5
|
140
|
|
134g
|
|
PL-07840257
|
25 - 3/4'' - 25
|
25 mm
|
3/4"
|
146
|
54
|
58
|
18
|
5
|
140
|
|
137g
|
|
PL-07840321
|
32 - 1'' - 32
|
32 mm
|
1"
|
170
|
64
|
67
|
20
|
5
|
80
|
|
218g
|
|
PL-97840408
|
40 - 1.1/4'' - 40
|
40 mm
|
1.1/4"
|
205
|
82
|
84
|
22
|
-
|
50
|
|
373g
|
|
PL-
|
40 - 1.1/2'' - 40
|
40 mm
|
1.1/2"
|
205
|
82
|
84
|
22
|
-
|
50
|
|
376g
|
|
PL-
|
50 - 1.1/4'' - 50
|
50 mm
|
1.1/4"
|
230
|
96
|
93
|
26
|
-
|
36
|
|
521g
|
|
PL-97840505
|
50 - 1.1/2'' - 50
|
50 mm
|
1.1/2"
|
230
|
96
|
93
|
22
|
-
|
36
|
|
521g
|
|
PL-
|
50 - 2'' - 50
|
50 mm
|
2"
|
230
|
96
|
93
|
22
|
-
|
36
|
|
508g
|
|
PL-078400063013
|
63 - 1.1/4'' - 63
|
63 mm
|
1 1/4"
|
268
|
113
|
113
|
22
|
-
|
20
|
|
828g
|
|
PL-
|
63 - 1.1/2'' - 63
|
63 mm
|
1 1/2"
|
268
|
113
|
113
|
22
|
-
|
20
|
|
821g
|
|
PL-97840632
|
63 - 2'' - 63
|
63 mm
|
2"
|
272
|
113
|
110
|
26
|
-
|
20
|
|
876g
|
